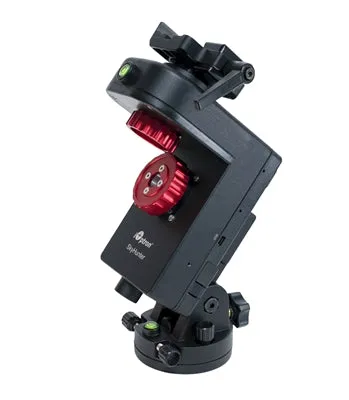

Introducing SkyHunterTM, iOptron's Latest Dual-Mode EQ/AZ GoTo Mount!
Building on a 15-year legacy since the debut of the groundbreaking CubeTM AZ/EQ GoTo mount, the SkyHunterTM sets new benchmarks in iOptron's line of cutting-edge mounts. This incredibly lightweight and ultra-compact mount tips the scales at just 2.9 lbs, battery included, yet can handle a payload of up to 11 lbs in both equatorial and alt-azimuth configurations.
When it comes to tracking, the SkyHunterTM is as versatile as it gets. You get four distinct tracking speeds: sidereal or 1X, half-speed or 1/2X for mixed sky and landscape tracking, as well as solar and lunar rates. Plus, these tracking modes are functional in both the northern and southern hemispheres.
Control-wise, you've got options. The SkyHunterTM is compatible with SkySafari 6 Plus or newer versions on iOS and Android devices, and you can also opt for an 8410 hand controller. If you prefer using a computer, ASCOM, INDI, or the mount's own embedded drive can be used for control.
Key Features:
- Versatile EQ/AZ mount ideal for grab-and-go setups
- Mount weight: 2.9 lbs (1.3 kg)
- Max payload: 11 lbs (5 kg), excluding counterweight
- Dual-axis servomotors equipped with optical encoders
- Tracking speeds: solar, lunar, 1X, 1/2X, applicable in both hemispheres
- Vixen-style dovetail saddle
- Up to 10 hours of operation on a single charge (at 20°C)
- Built-in Wi-Fi for comprehensive control via ASCOM, iOptron CommanderTM, and Sky Safari
- USB connectivity for firmware updates and computer-based control
- Optional Go2Nova® 8410 controller featuring Advanced GOTONOVA® GOTO Technology
- Counterweight Shaft: 20mm diameter x 200mm length, 3/8" threading, made of stainless steel
- 3 lbs (1.35 kg) counterweight included
- Mount compatible with tripods featuring 3/8" or 1/4" threads
- Optional add-ons: 1.25" stainless steel tripod (#3221), carbon fiber tripod, pier-extension (#8041)
- Warranty: One-year limited for the mount, 90 days for the battery
Specifications
| Mount | Ultracompact GOTO EQ/AZ mount |
| Payload (Max.) | 11 lbs (5kg), balanced |
| Mount weight | 2.9 lbs (1.3kg) with battery |
| Structure material | Metal frame structure |
| Motor drive | Dual-axis DC servo motor with optical encoder |
| Transmission | Synchronous belt |
| Tracking speed | Solar, Lunar, Cel, 1/2 Cel, and N/S |
| Maximum slew speed | 4.5°/sec (1080X) |
| Worm period | 600 sec |
| RA/DEC worm wheel | Φ77 mm, 144 teeth |
| Hand controller | Yes (with optional 8410 HC) |
| Altitude adjustment range | 0º ~ 80º |
| Azimuth adjustment range | ±5º |
| Power Requirement | Internal rechargeable battery |
| Battery type | Li-Poly, 3.7V, 2000mAh |
| Duration of operation | Up to 10 hours at 20ºC |
| Counterweigh Shaft | Φ20mmX200mm, 3/8" thread, stainless steel |
| Counterweigh | 3 lbs (1.3 kg) |
| Dovetail saddle | Vixen-type |
| Body base connection | Vixen dovetail, 3/8” socket |
| Autoguiding | ASCOM compatible |
| Power charge port | MiniUSB (5V) |
| Wi-Fi | Built-in |
| Communication port | Yes (Wi-Fi and USB) |
| Firmware upgrade | Yes (via USB port) |
| Operation Temperature | -10ºC ~40ºC |
| Warranty | One year limited (90 day on battery) |
What's in the Box?
