Underwater vision systems deliver performance AND functionality. Machine vision (MV) cameras are renowned for being compact, affordable, and highly adaptable while delivering high-quality images. Now capture these benefits in an underwater system.

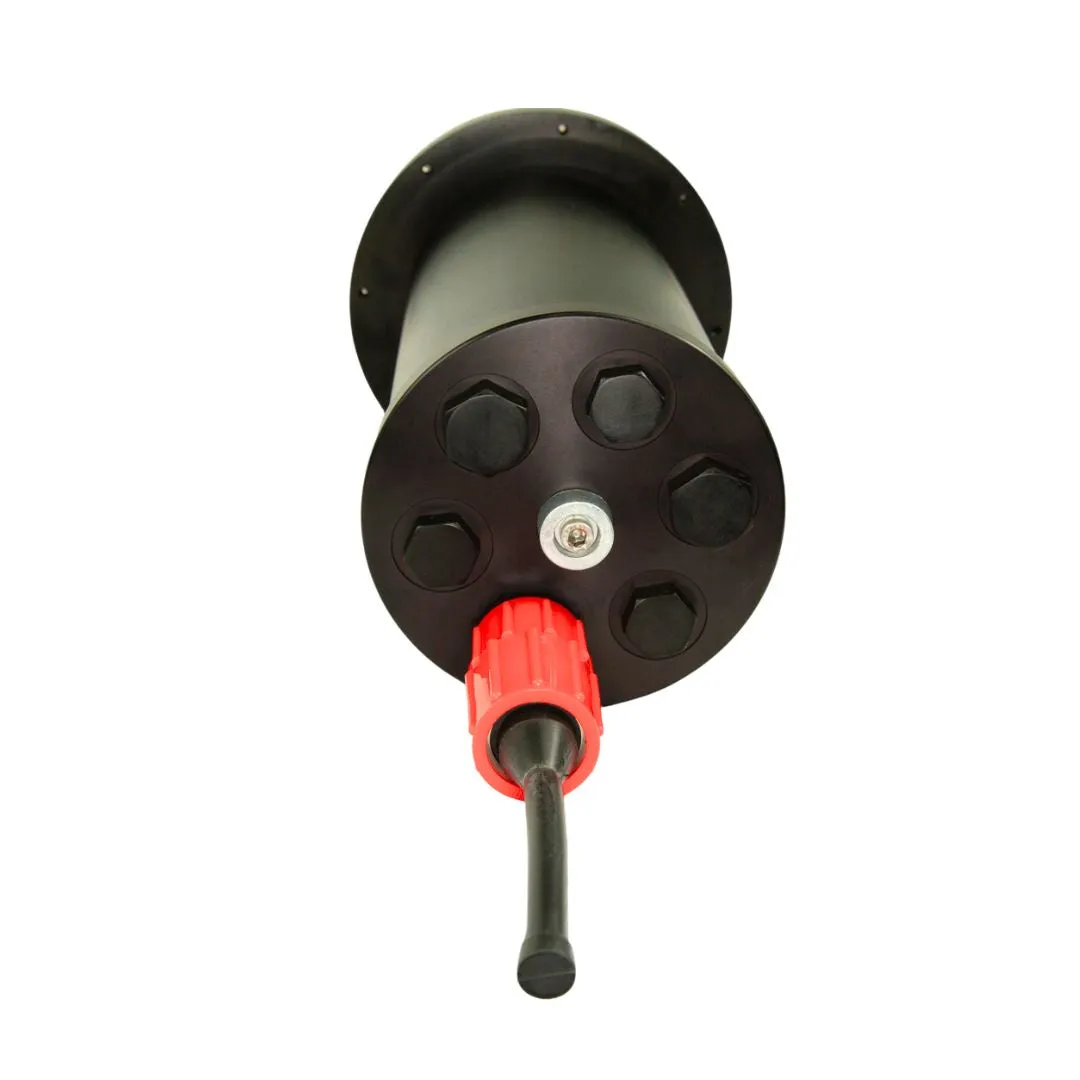

These plug-and-play systems can be customized with an 8 or 13 pin bulkhead and fully compatible with the gamut of machine vision cameras as well as Baumer HXG20, Allied Vision Prosilica GE, Point Grey Grasshopper, Point Grey Zebra cameras. The MV-series provides

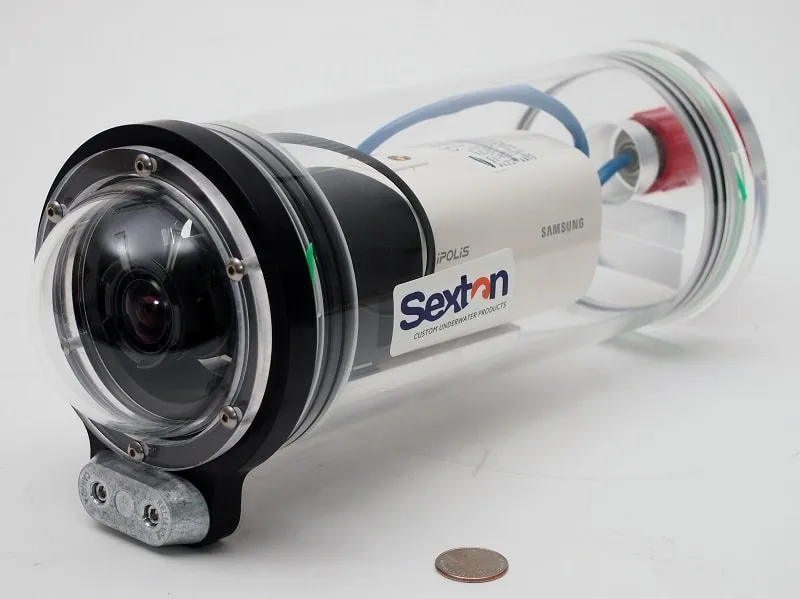

• Options for marine science-grade anodized aluminum or acetal bodies

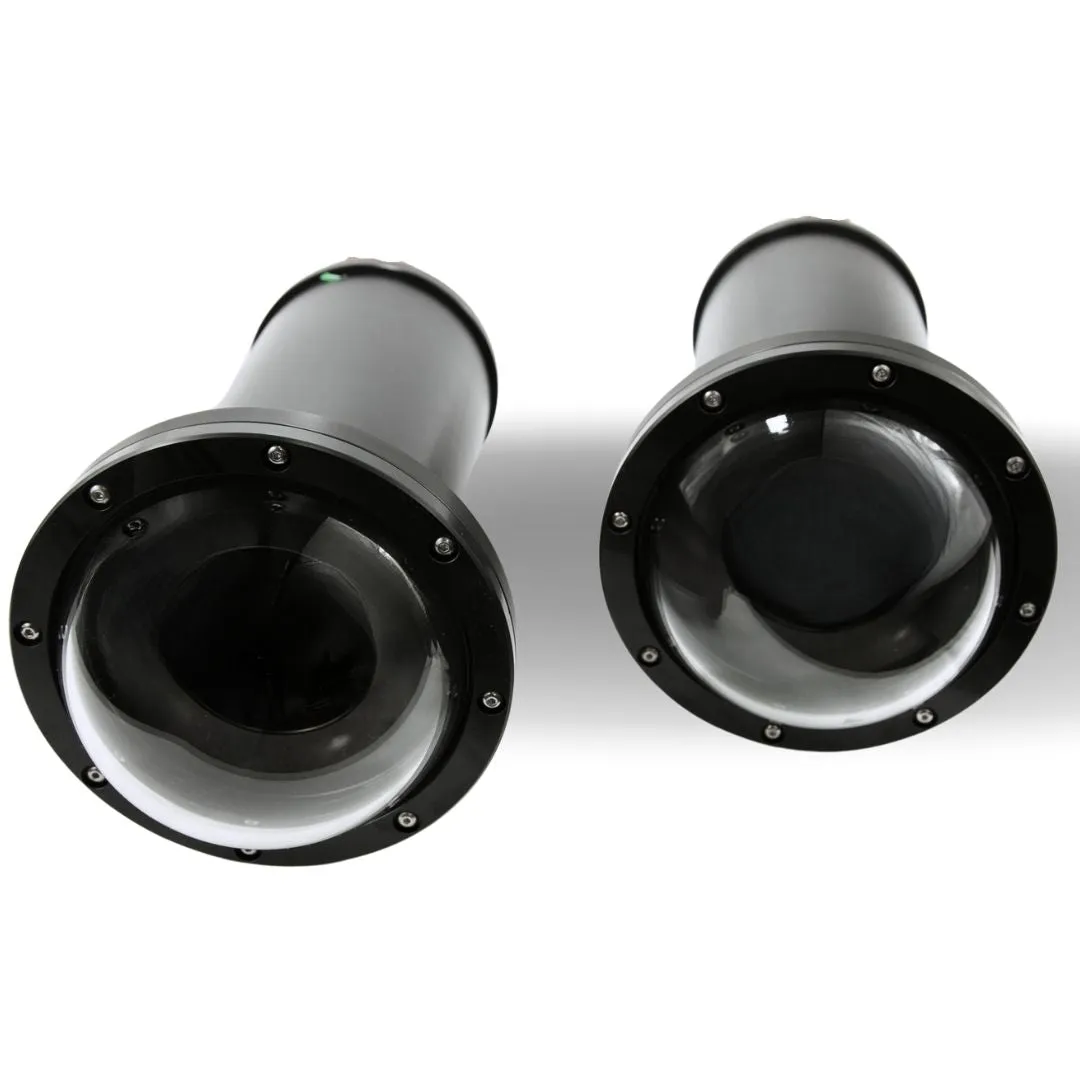

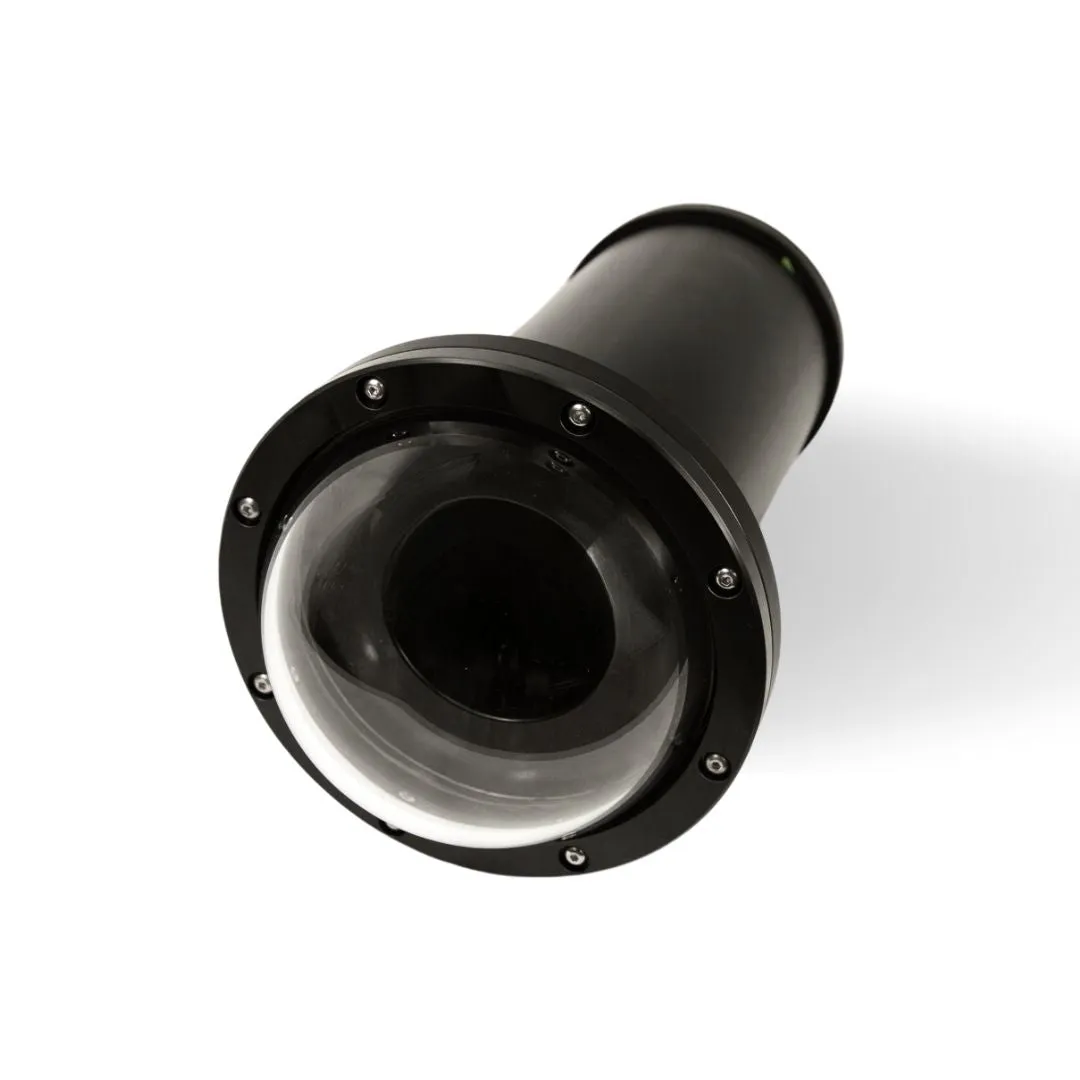

• Crystal clear wide-angle dome ports
• "STRING-LOC" door closure
• Adjustable camera tray
• Double bore 1/8 inch o-ring design
• Indexed mounting system for high precision positioning
• Depth Rating: 877 meters
• Maximum Lens size: 2.5" or camera up to 52mm high

MV- Series Manual

Pricing is for housing ONLY and does not includes lens, camera, or connectors.
